Home > Product > Servo motor > Hub Servo Catalog

Product Hub Servo Catalog

WS80L-07A250C-MUGA03

Fuxing stepper motors provide high-performance two-phase and three-phase hybrid stepper motors with various sizes and output torques, single polarity or bipolar control, and single or dual axis. The products are divided into standard type, torque enhanced type, high protection type, etc., which can fully meet the various application needs of different users.

option:

Inquiry Contact

Parameter
Overall Dimensions
Download
Cooperation

1. Specifications

Model	WS80L-07A250C-MUGA03
Diameter Size	200mm
Rated Voltage	36VDC
Rated Current	7 Arms
Maximum speed	250rpm(Line speed 2m/s)
Rated Torque	7 N.m
Peak Torque	18 N.m
Operating Temperature	-10℃～40℃（Non-freezing）
Operating Humidity	5～95%RH（Non-condensing）
Storage Temperature	-10℃～70℃（Non-freezing）
Storage Humidity	Below 90%RH（Non-condensing）
Protection Class	Ip67 except shaft
Weight	3.25Kg
Suggested Load (2 PCS)	Below 110kg

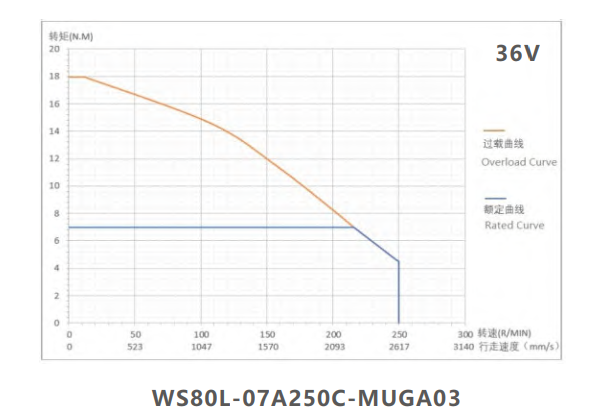

2. Torque Curve

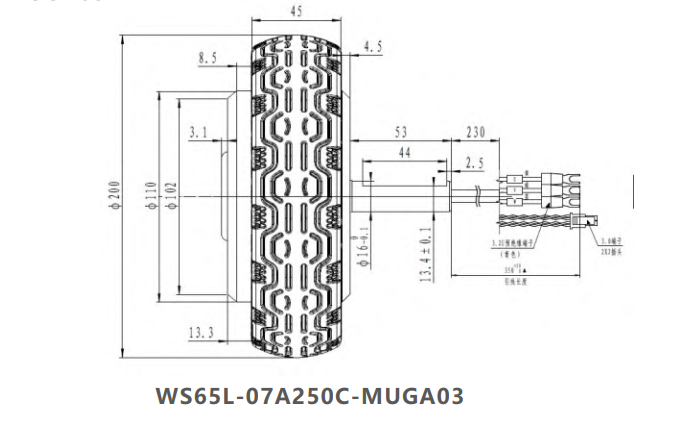

Motor size

Download

IWS Series Hub Motor Motor User Manual - Fulling Motor

1.1 MB
