φ46 PM LINEAR STEPPING MOTOR
Product PM stepper motor

φ46 PM LINEAR STEPPING MOTOR

Fuxing stepper motors provide high-performance two-phase and three-phase hybrid stepper motors with various sizes and output torques, single polarity or bipolar control, and single or dual axis. The products are divided into standard type, torque enhanced type, high protection type, etc., which can fully meet the various application needs of different users.
option:
  • φ46 PM LINEAR STEPPING MOTOR
  • φ46 PM LINEAR STEPPING MOTOR
  • φ46 PM LINEAR STEPPING MOTOR
  • φ46 PM LINEAR STEPPING MOTOR

1. SPECIFICATIONS

Winding

Unipolar/Bipolar

Type

Non-Captive,   External

Step Angle


7.5

Voltage

V

5

12

Current/phase

mA

1000

410

Resistance/Phase

Ω

5

29

Inductance/Phase

mH

9

52

Travel per step Avail

mm

0.0127

0.0254

0.0508

NOTE：The motor can be designed with customized request

Screw diameter Optional① 6.35 ② 4.77（mm）

Lead Optional① 0.6096、1.0、1.2192、1.27、2.4384、2.54、4.0、8.0......（mm）；② 0.635、1.27、2.54、5.08、10.16 ......（mm）

Travel per step Avail =(Step Angle/360)* Lead（mm）

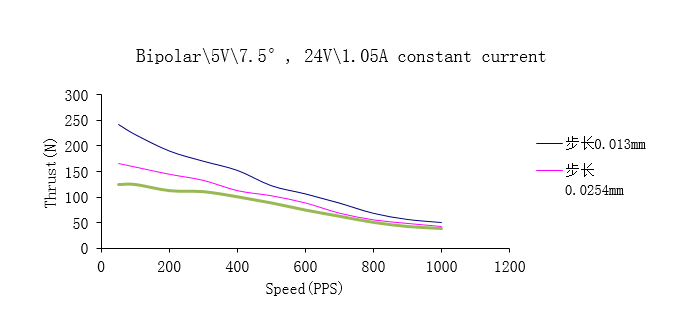

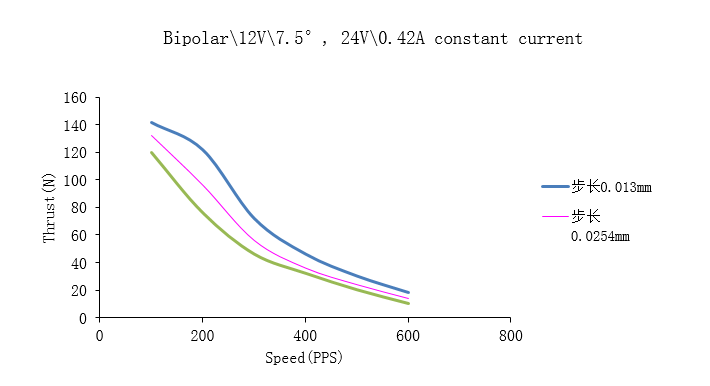

2. STEP SPEED AND THRUST CURVEimage

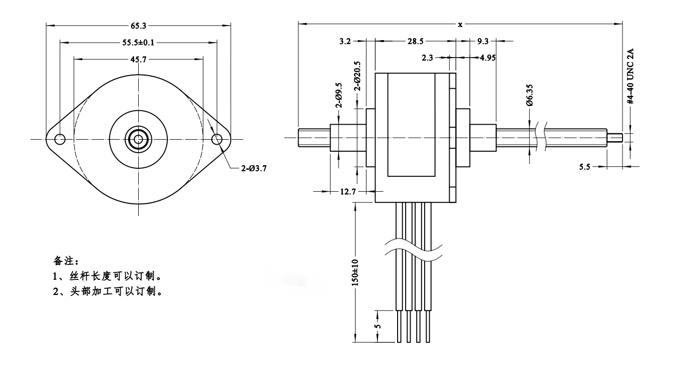

Motor size
